To comply with various inspection fixture standards, a
new type of hinge units with a handle locking mechanism has been
developed and added to the product line., please refer to the list
below.
|
|
Item#
|
Part Number
|
Description
|
Visual Reference
|
|

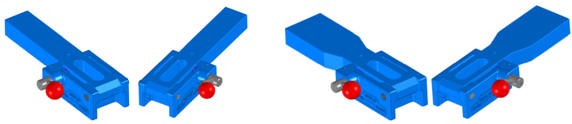

1
|
KTC-HUH-3075-L-STL-PRO-CB
|
PRO 3075 LH HINGE UNIT/REGULAR ARM/ CASTING BASE
|
 |
|
2
|
KTC-HUH-3075-R-STL-PRO-CB
|
PRO 3075 RH HINGE UNIT/REGULAR ARM/ CASTING BASE
|
 |
|
3
|
KTC-HUH-3075W-L-STL-PRO-CB
|
PRO 3075 LH HINGE UNIT/WIDE ARM/ CASTING BASE
|
 |
|
4
|
KTC-HUH-3075W-R-STL-PRO-CB
|
PRO 3075 RH HINGE UNIT/WIDE ARM/ CASTING BASE
|
 |
|
|
Item#
|
Part Number
|
Description
|
Visual Reference
|
|
5
|
KTC-HUH-3075-L-STL-PRO-CB-CPT
|
PRO 3075 LH HINGE UNIT/REGULAR ARM/ CASTING BASE/WITH CAPTURER
|
|
|
6
|
KTC-HUH-3075-R-STL-PRO-CB-CPT
|
PRO 3075 RH HINGE UNIT/REGULAR ARM/ CASTING BASE/WITH CAPTURER
|
 |
|
7
|
KTC-HUH-3075W-L-STL-PRO-CB-CPT
|
PRO 3075 LH HINGE UNIT/WIDE ARM/ CASTING BASE/WITH CAPTURER
|
 |
|
8
|
KTC-HUH-3075W-R-STL-PRO-CB-CPT
|
PRO 3075 RH HINGE UNIT/WIDE ARM/ CASTING BASE/WITH CAPTURER
|
 |
|
|
3D CAD Data is the master and to be available as per Requested . |
 |
|
