KTC Extendable Linear Transfer SPC Modules

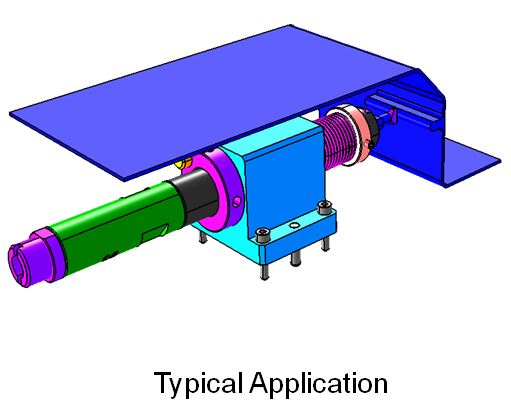

KTC Extendable Linear Transfer SPC Modules are used for SPC applications where the probe contact only can reach the checking point under the part and there is no room for an indicator checking the part directly. This product has features :

1.Designed with retraction to protect the probe from being hit, when the part is loaded in the fixture.

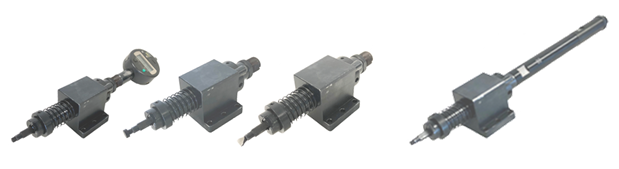

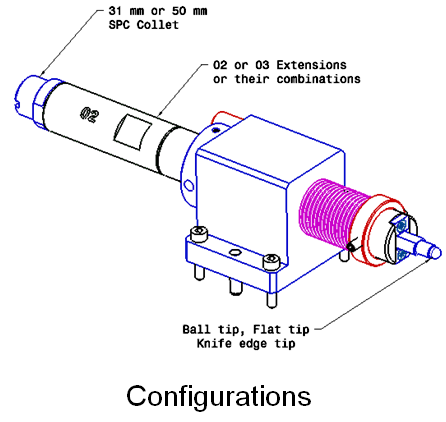

2.Flexible configurations of different lengths and tips.

3.Ease of installation.

Item	Part Number	Description	Visual Reference
1	KTC-SPC-ELTM-31-BTP	31 mm Ball Tip Extendable Linear Transfer SPC Module
2	KTC-SPC-ELTM-31-FTP	31 mm Flat Tip Extendable Linear Transfer SPC Module
3	KTC-SPC-ELTM-31-KTP	31 mm Knife Edge Tip Extendable Linear Transfer SPC Module
4	KTC-SPC-ELTM-50-BTP	50 mm Ball Tip Extendable Linear Transfer SPC Module
5	KTC-SPC-ELTM-50-FTP	50 mm Flat Tip Extendable Linear Transfer SPC Module
6	KTC-SPC-ELTM-50-KTP	50 mm Knife Edge Tip Extendable Linear Transfer SPC Module
7	KTC-VTH-EXT2	VTH Number 2 Extension
8	KTC-VTH-EXT3	VTH Number 3 Extension

3D CAD Data is the master and to be available as per Requested .
