Bracket Risers

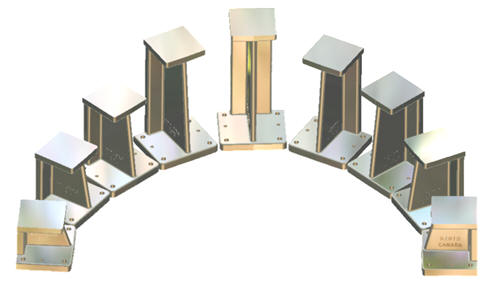

KTC "Standard Metric Bracket Risers" are widely used on Checking Fixtures, White Light Fixtures and CMM Holding Fixtures. The lightweight design helps you save on material and keeps fixture costs low. There are two series of Riser Brackets, one is made of aluminum casting with the heights from 100 mm to 300 mm; Another one is made of aluminum extrusions with the heights of 350 mm up to 750 mm.

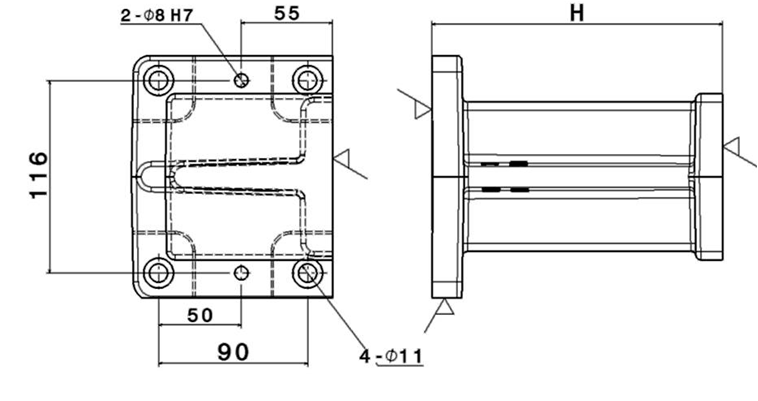

Aluminum Casting Bracket Risers

Item #	Part Number	Description	Size H
1	KTC-BRS-100	Bracket Risers	100 mm
2	KTC-BRS-125		125 mm
3	KTC-BRS-150		150 mm
4	KTC-BRS-175		175 mm
5	KTC-BRS-200		200 mm
6	KTC-BRS-225		225 mm
7	KTC-BRS-250		250 mm
8	KTC-BRS-275		275 mm
9	KTC-BRS-300		300 mm

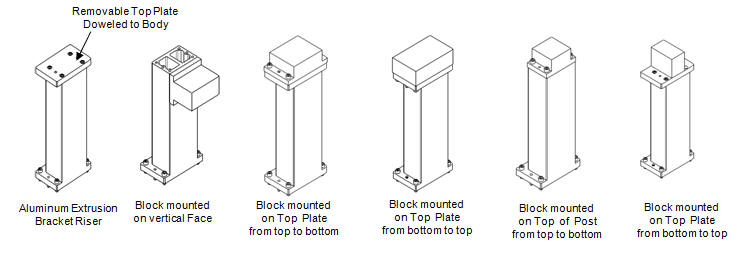

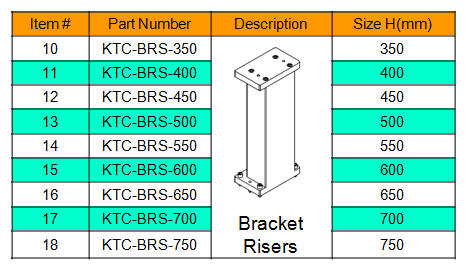

Aluminum Extrusion Bracket Risers
