Angle Brackets

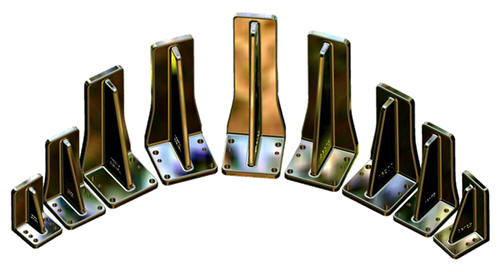

KTC Angle Brackets are made of aluminum and with hard coated; There are 9 different sizes start with the height 100 mm to 300 mm at an increment of 25 mm.

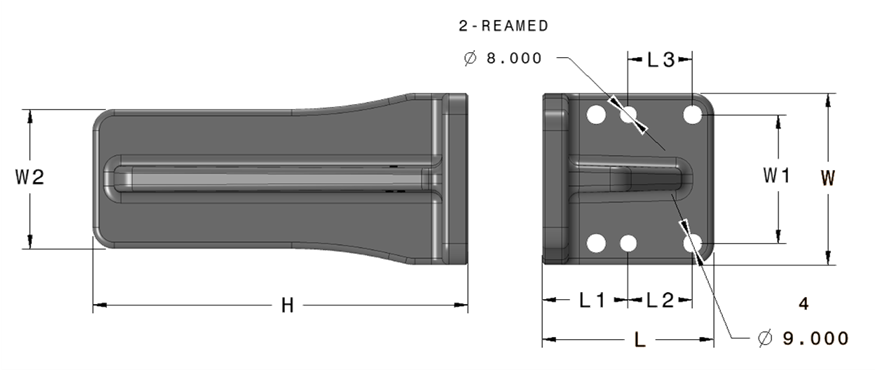

Item#	Part Number	H	W	W1	W2	L	L1	L2	L3	Ød1	Ød2
1	KTC-AG-100-AL	100	70	45	65	65.5	40	13	28	9	8
2	KTC-AG-125-AL	125	70	45	65	78.5	40	26	41	9	8
3	KTC-AG-150-AL	150	85	60	65	85.5	40	33	48	9	8
4	KTC-AG-175-AL	175	85	60	65	91.5	50	29	54	9	8
5	KTC-AG-200-AL	200	107	80	75	103.5	50	40	60	11	8
6	KTC-AG-225-AL	225	107	80	75	103.5	50	40	60	11	8
7	KTC-AG-250-AL	250	107	80	75	103.5	50	40	60	11	8
8	KTC-AG-275-AL	275	107	80	75	103.5	50	40	60	11	8
9	KTC-AG-300-AL	300	107	80	75	103.5	50	40	60	11	8

Material and Heat Treatment:

•ZL114 (A13570) - T5

Machining Tolerances:

•Perpendicularity between two machined surfaces: 0.03 MM

•Dowel hole size: (+0.013 ~ +0.028) MM

•Dowel hole position tolerance: ±0.03 MM

3D Models are available as per request
